Revoice Pro 5.1 Manual Publication

Capturing Audio

    This section shows you how to transfer audio from a project in Reaper to Revoice Pro 5 using the ARA (Legacy) link plug-in.


    Note: For Reaper to work reliably with the RevoicePro, we recommend that in Reaper you deselect (disable) the option "Preferences->Media->Set media items offline when application not active".


    We will work with two example tracks:


    • Lead Vocal GUIDE: This will function as our Guide track
    • Double Vocal DUB: This will function as our Dub track, or the track which will be aligned to the Guide


    Choose two pieces of audio to be your Guide and Dub. A comman example would be a Lead Vocal as the Guide and a Backup Vocal as a Dub track.




    For each track that you want to transfer to Revoice Pro, follow these steps in Reaper:

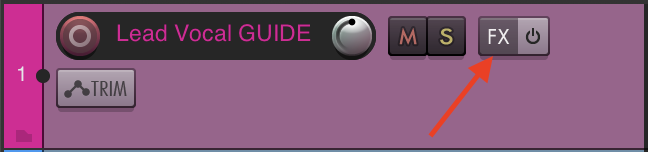

    1. Click the track's "Show Track Fx Window" button.

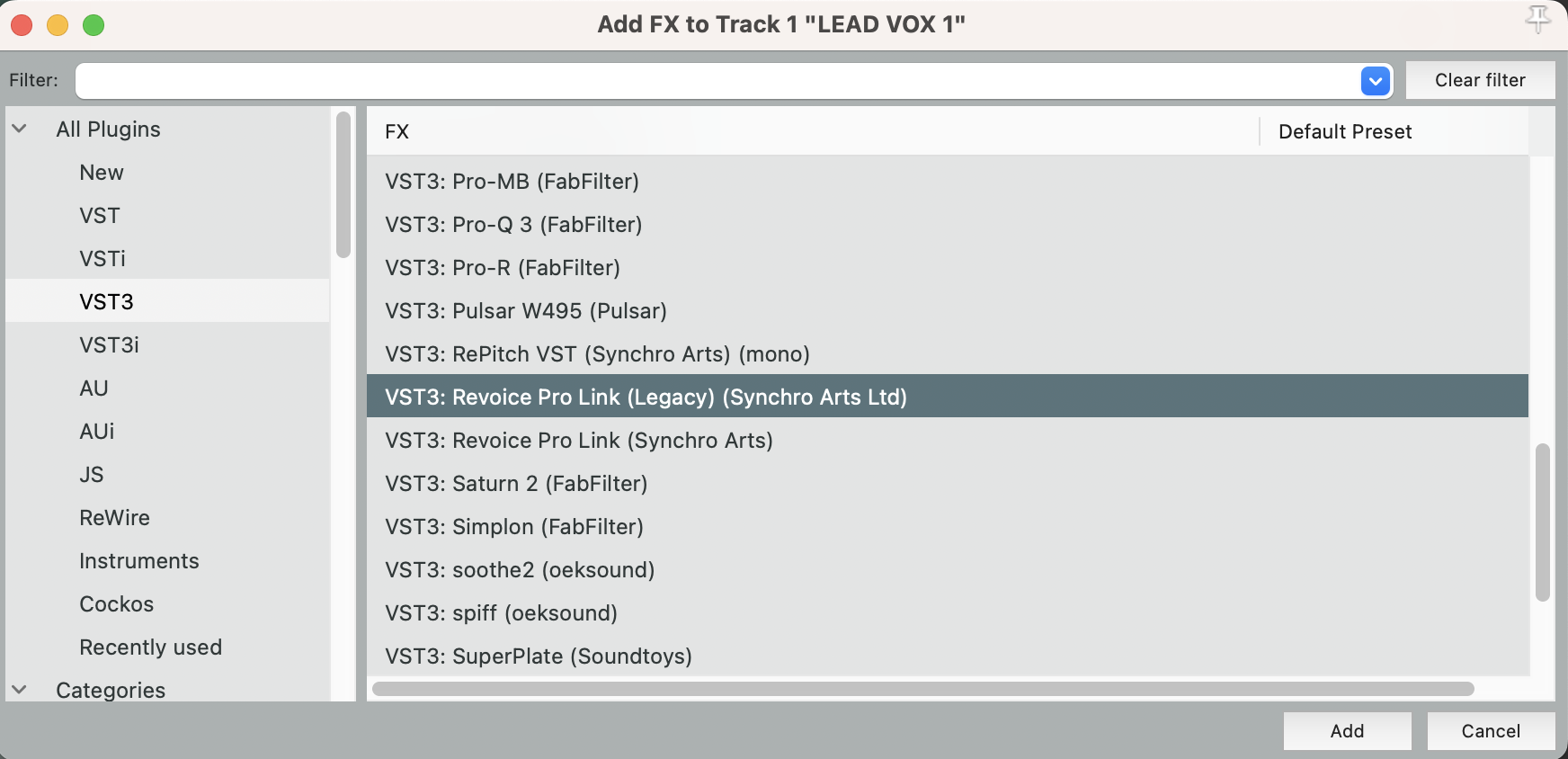

    2. In the "Add FX to:" dialogue box, choose VST3 in the column on the left.





    3. From the list of VST3  plug-ins in the "Add FX to:" window, select Revoice Pro Link (Legacy) and then press the OK button.

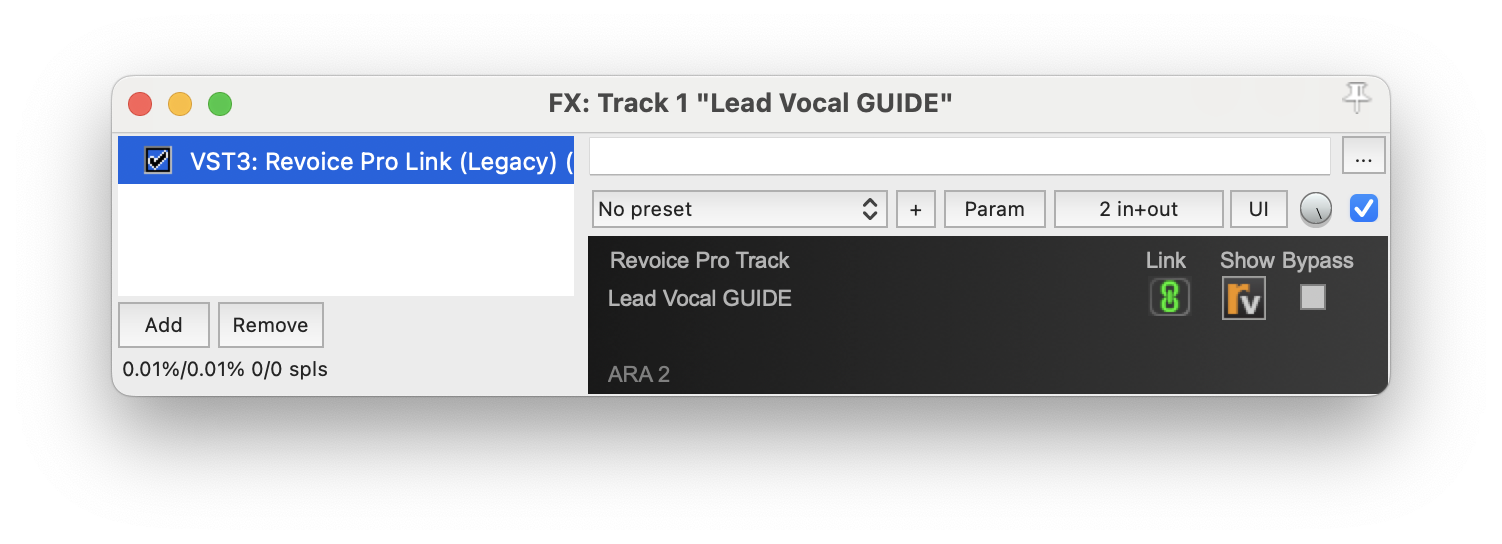

    4. Once you have added RevoicePro Link to the track, Reaper will display each plug-in labelled with the name of its associated track. In this example its label is "Track 1: Lead Vocal GUIDE".


    If Revoice Pro is not running, you will see the message "Press the Start button to run Revoice Pro" at the bottom of the plug-in's window. If Revoice Pro is not running, press in the plug-in.


    5. When Revoice Pro is running the Start button becomes a Show button. Press Show in the plug-in to bring Revoice Pro to the foreground on your screen.


    6. Similarly, add the RevoiceProLink plug-in to Reaper's track "LEAD VOX 2".

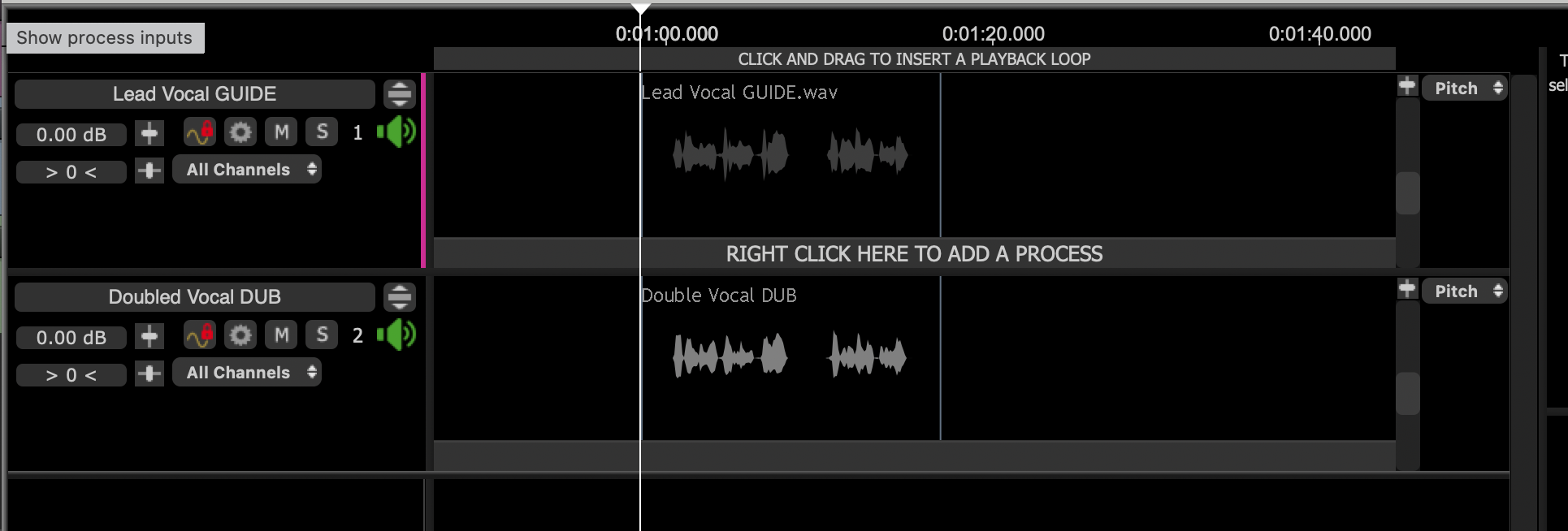

    As soon as Revoice Pro is running, Reaper will open a new session in Revoice Pro, create any new tracks (if needed)  and copy the audio in each linked track to Revoice Pro.  The new session in Revoice Pro will have the same name as Reaper's, which in this example is Revoice Pro with Reaper. Each track in Revoice Pro will have the same name (and colour) as the corresponding track in Reaper.




    Once Reaper has opened a session in Revoice Pro, Link icon in each plug-in's window will glow green. This indicates that Revoice Pro will try to mirror the position and audio content of all linked linked tracks (LEAD VOX 1 and LEAD VOX 2 in this example). In other words if you change the audio in track  LEAD VOX 2 in Reaper, any changes will be transferred across to the corresponding track in Revoice Pro.



    Any tracks that Reaper has created in Revoice Pro are automatically locked. The red padlock    in the track's status area indicates this. Although you cannot edit any of the linked audio directly in Revoice Pro (as the track is locked), the ARA interface synchronize each audio segment in Revoice Pro with its linked audio in Reaper.


    Notes:


    1. To unlock a track, it is necessary to remove the Revoice Pro Link plug-in from  the corresponding track in Reaper. For example, if you need to unlock track Audio 1 in Revoice Pro, in Reaper you will need to remove the Revoice Pro Link plug-in from track 1, LEAD VOX 1.


    1. You may want to stop a track in Revoice Pro from automatically following changes in Reaper. To stop the automatic updating in Revoice Pro, click Link click the Link icon , in the Link plug-in's window. The icon will turn grey and the track in Revoice Pro will no longer follow any changes that you make in Reaper.
