VST3 Monitor plug-in (Nuendo example)

Audio setup, monitoring and playback » Audio monitoring » Revoice Pro Monitor plug-in » VST3 Monitor plug-in » VST3 Monitor plug-in (Nuendo example)

In Nuendo (Cubase), open the Devices Menu and select VST Instruments

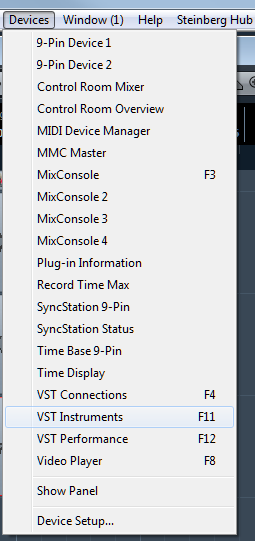

Nuendo - Devices Menu

The window below will open. Left click on Track Instruments.

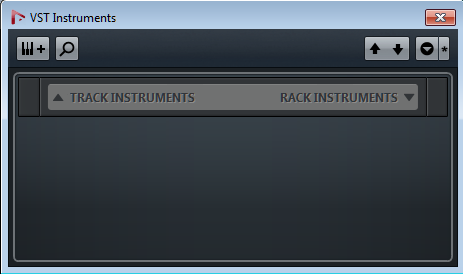

Nuendo - VST3 Instruments


A window similar to the one below will appear.

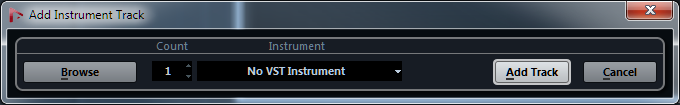

Nuendo - Track Instrument menu


If required, left click Add Track. Then left click on No VST Instrument and select Revoice Pro Monitor from the menu list that will be similar to the one below

Nuendo - Select Revoice Pro Monitor


The Revoice Pro Monitor will be displayed in a window

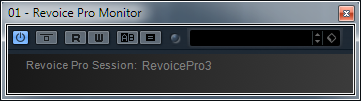

Nuendo Revoice Pro Monitor

In Revoice Pro check that the Monitor swich (shown in red box below) is enabled as shown.

Revoice Pro Monitor on


You should now be able to start playing audio from Revoice Pro through the Nuendo system and Revoice Pro will also follow Nuendo's playback.

NOTE: In Nuendo make sure that the Release Driver when Application is in Background option is not checked. If this option is checked when you try and start playing from Revoice Pro the operation will fail because Nuendo is in the background.

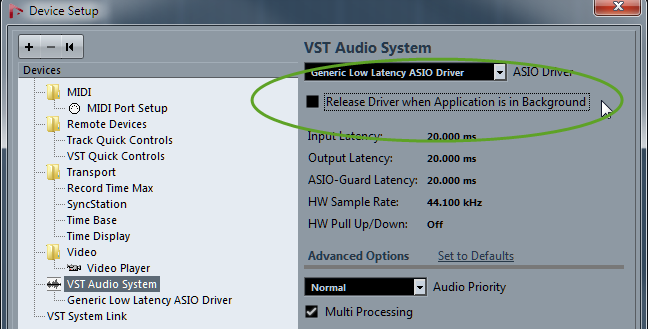

Nuendo - VST Audio Panel



If you want to stop Revoice Pro from playing audio when you are playing audio in Nuendo you can click the Monitor switch to OFF. Alternatively you can mute the Nuendo  track which has the Revoice Pro monitor plug-in, but this will not stop Revoice Pro from following the Nuendo timecode.
