Capturing audio from Pro Tools using the link plug-in
From Revoice Pro 4.3, the Pro Tools Link plug-in has a number of capture modes to choose from, in a drop-down menu labelled Mode. The controls lower down the plug-in control window will change depending on the mode selected.

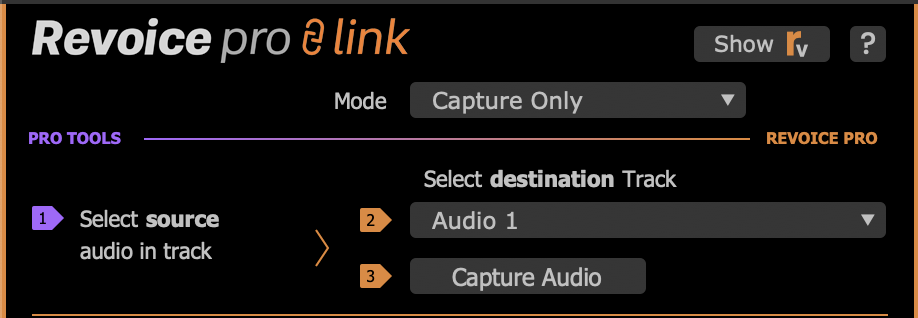

- Capture Only: only captures audio to a selected RVP track. You can then create processes as normal within Revoice.
- Capture & Make Match/Doubler/Adjust: captures audio to selected RVP tracks and creates a new RVP process using the selected Preset.
If you only want to capture audio, and create your own processes in RVP, select Capture Only from the drop-down Mode, select source audio in a PT track, choose an RVP track to send it to, and press Capture Audio.
- This capture process can be repeated a number of times to capture various chunks of source audio to different RVP tracks.
- Now go to RVP and Apply a Process.
- To return audio to PT see Transferring the audio back to ProTools using the link plug-in.
Capture audio and create a process automatically
The description below refers to capture of audio, and the automatic creation of a Match process. Similar points apply when using the Doubler or Adjust processes, but only one PT track is captured.

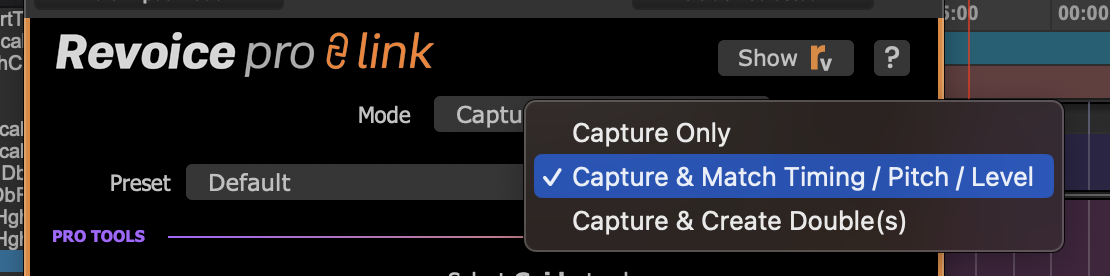

From the Mode drop-down menu, select Capture & Match Timing / Pitch / Level.

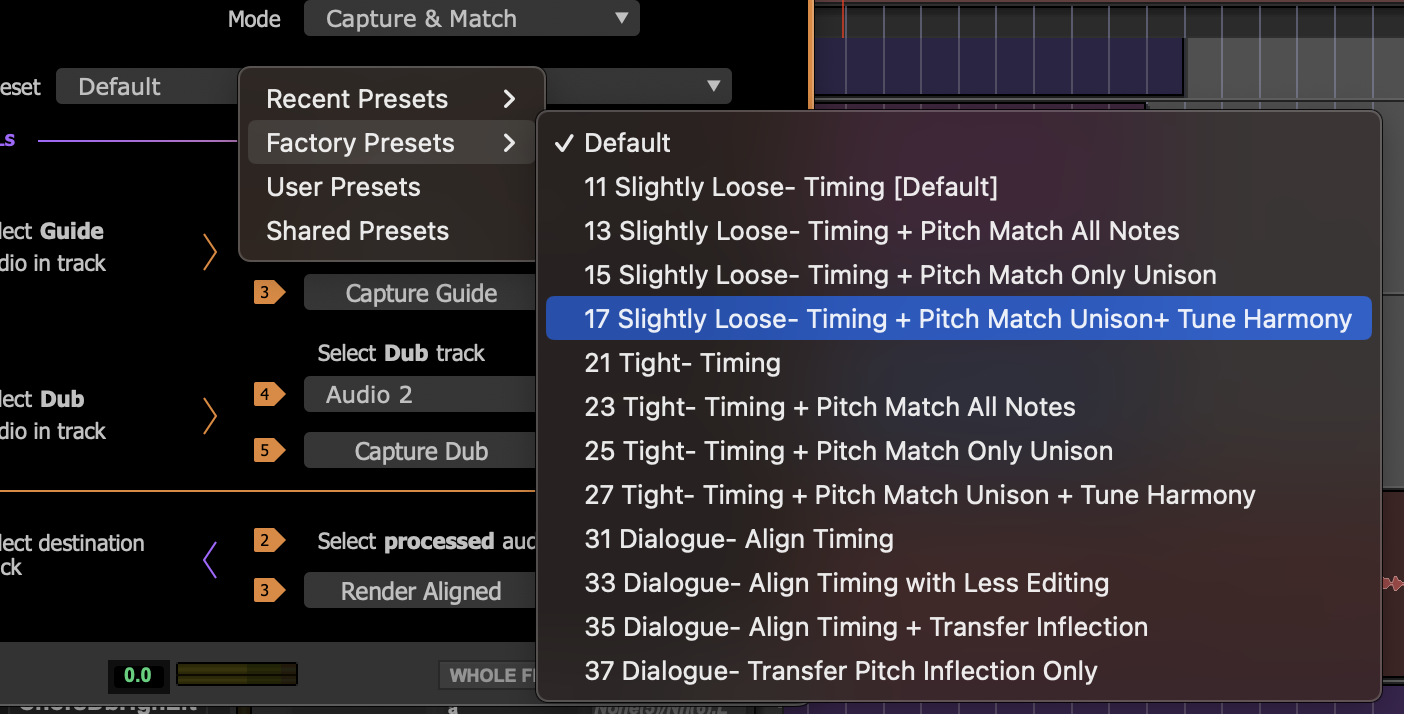

Select a suitable RVP preset from the drop-down Preset menu.

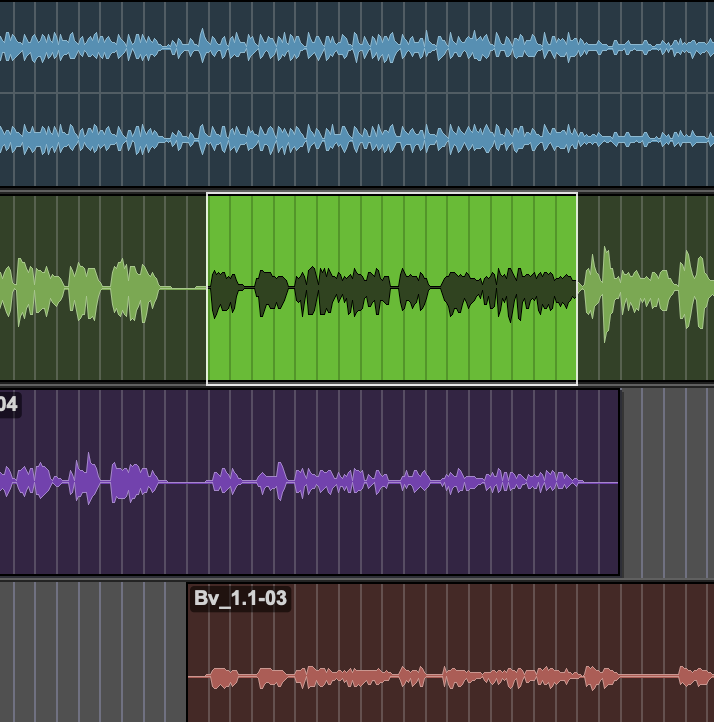

Select the audio in Pro Tools to be used as the Guide (if you haven't already done so) as shown below.

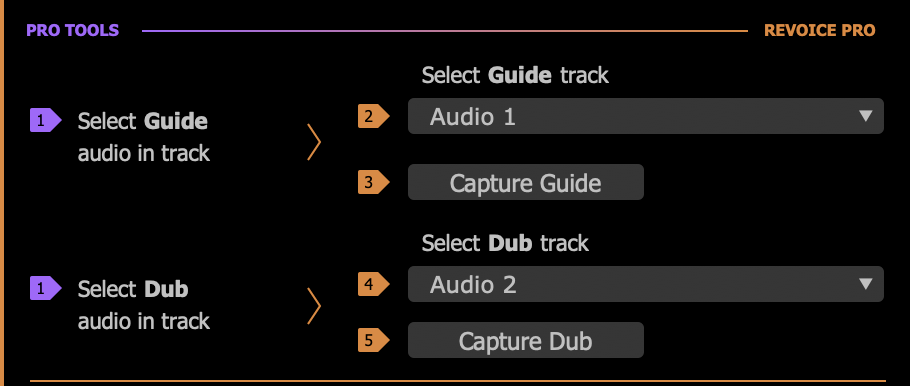

In the plug-in window, select the RVP audio track to which the Guide should be captured (the orange 2 arrow shown below).
Click Capture Guide in the plug-in window (the orange 3 arrow shown above). This will send the selected audio to the Revoice Pro (RVP) Session.

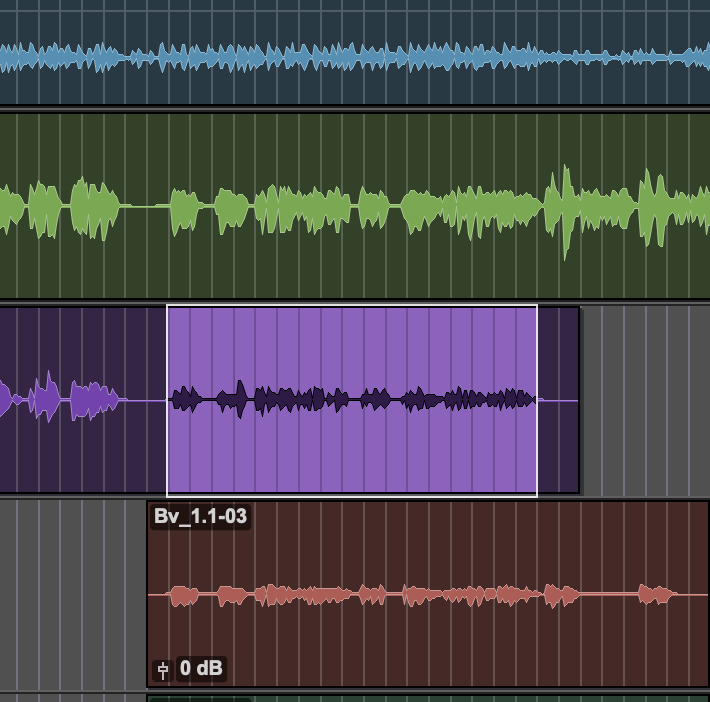

Select the audio in Pro Tools to be used as the Dub.
In the plug-in window shown above, select the RVP audio track to which the Dub should be captured (the orange 4 arrow shown in the plug-in window above).
Click Capture Dub in the plug-in window to load the Dub audio into RVP (the orange 5 arrow shown in the plug-in window above).
A Match Process track is automatically created with the Preset settings you chose.
If desired, you can then make any adjustments in RVP, see Apply a Process.
To return processed audio to PT see Transferring the audio back to ProTools using the link plug-in.
