Lower the energy displays

The Match Energy displays (shown in blue and orange) can interfere with the pitch trace's visibility. You can reduce these displays.

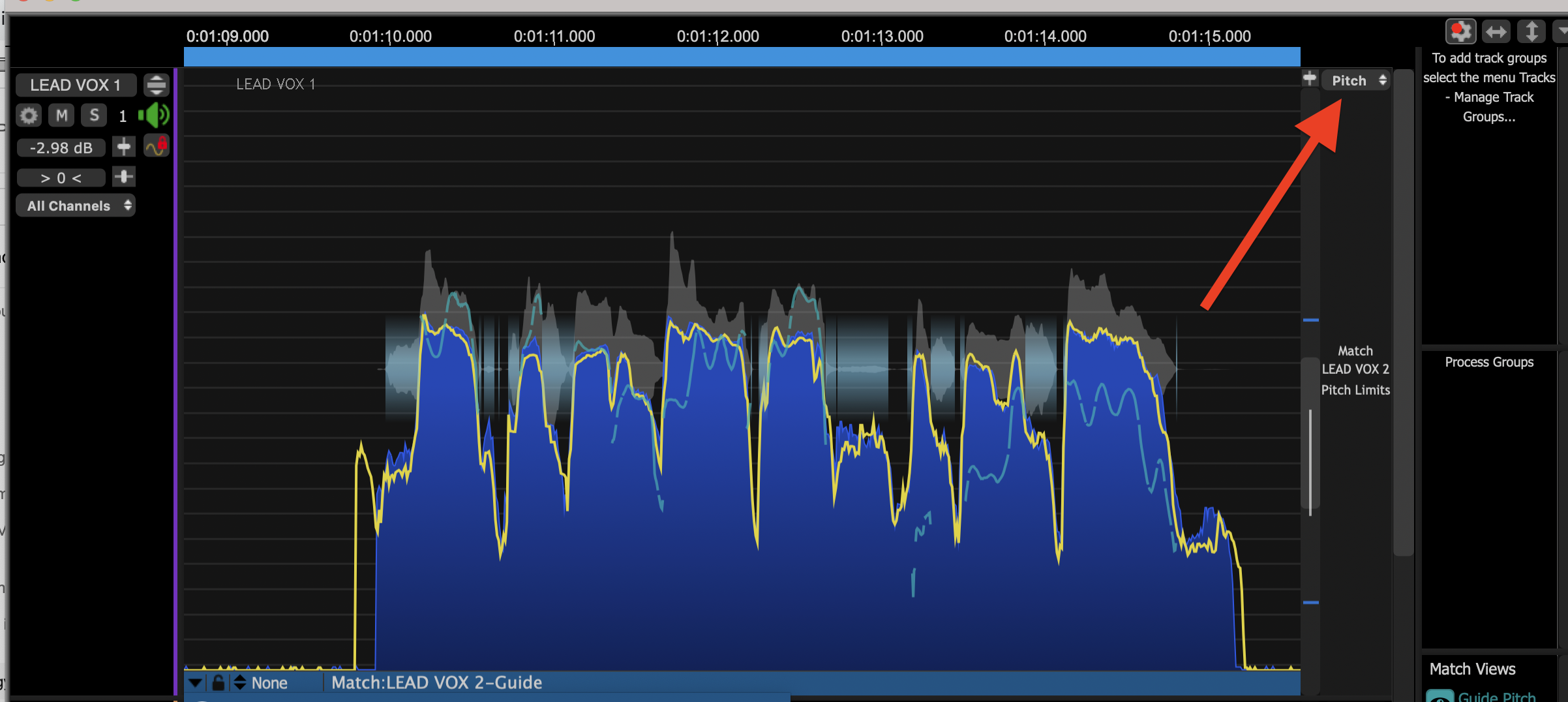

To do this, left click on the Guide or Dub's track Display's Scaling Selector (showing "Pitch" in the image below at the top right) to bring up the list of display scaling options.

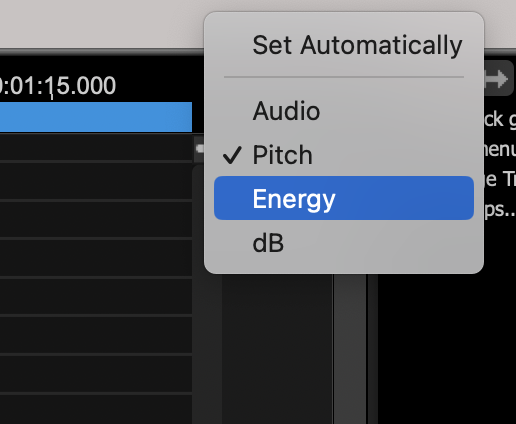

From this menu, select 'Energy' shown in blue below.

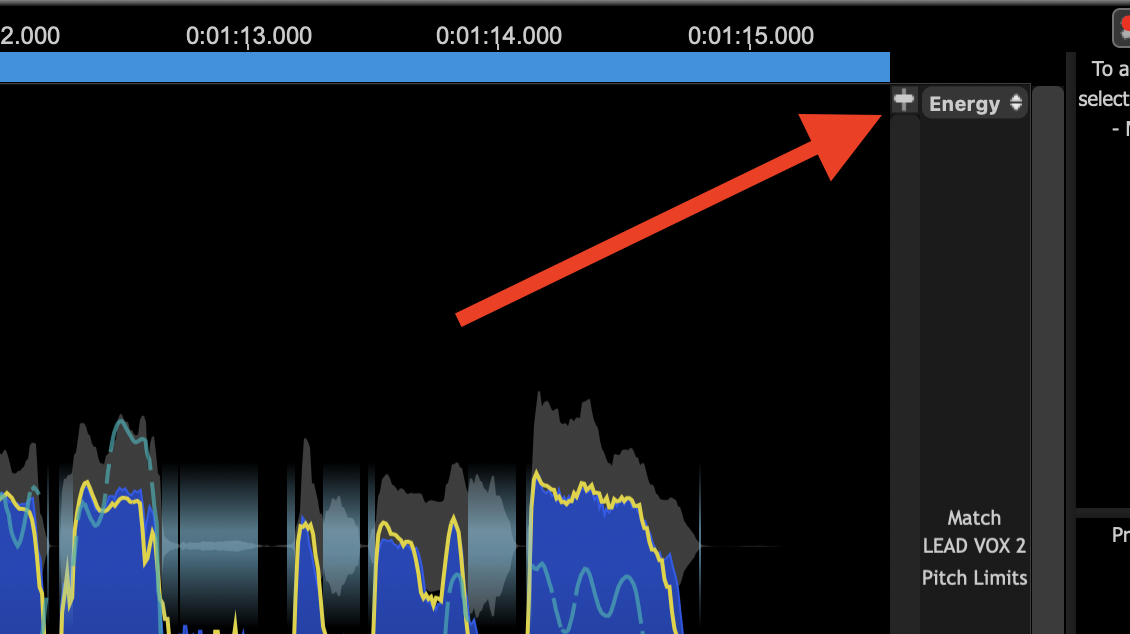

Click the Scale Display button immediately left of the 'Energy' option we have just selected. This will bring up a slider that can be used to increase or decrease the vertical size of the Energy Display.

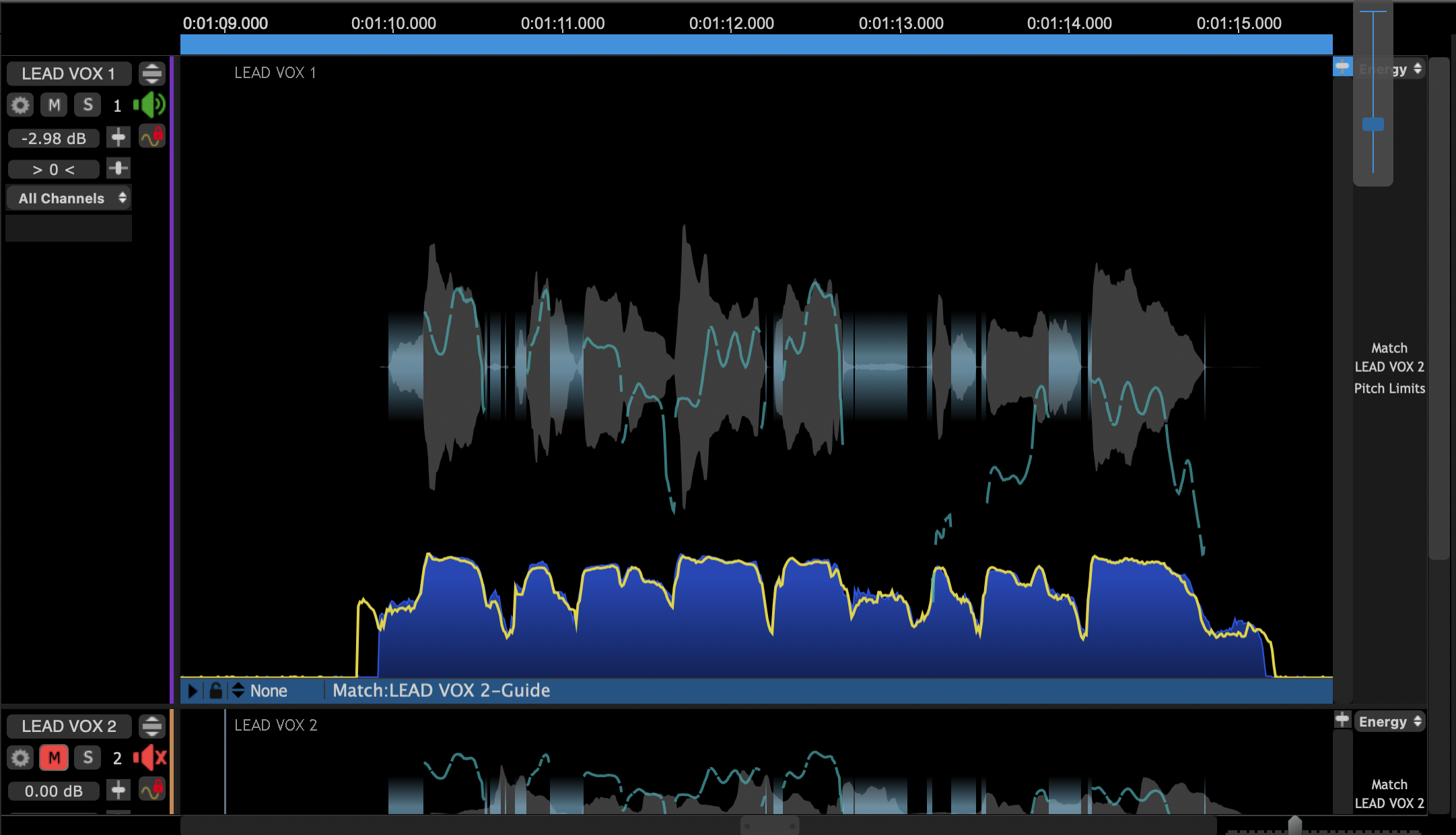

In the below image we have lowered the slider, and we can see that the Energy display has been reduced vertically.




If the SHIFT key is held down while moving the slider, the scaling will be applied to all the tracks with Energy displays.


When the slider reaches the bottom, the Energy displays will be reduced to a minimum.
