Revoice Pro 5.1 Manual Publication

Create a basic Match Process

Since the settings are set up correctly, we can specify our Guide and Dub tracks by clicking their respective 'Add >>' buttons.

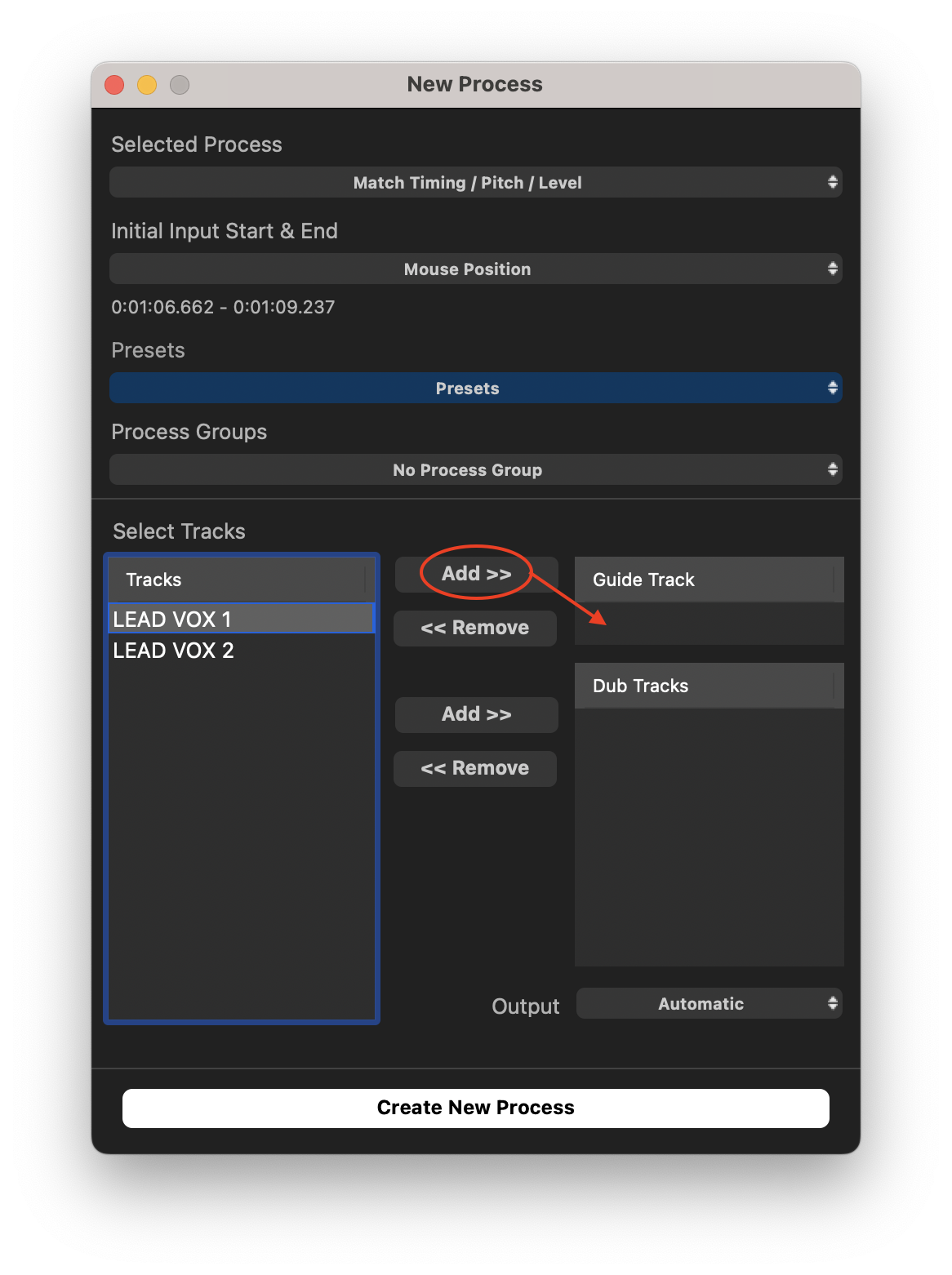

First select your Guide track in the list of available tracks on the left side:

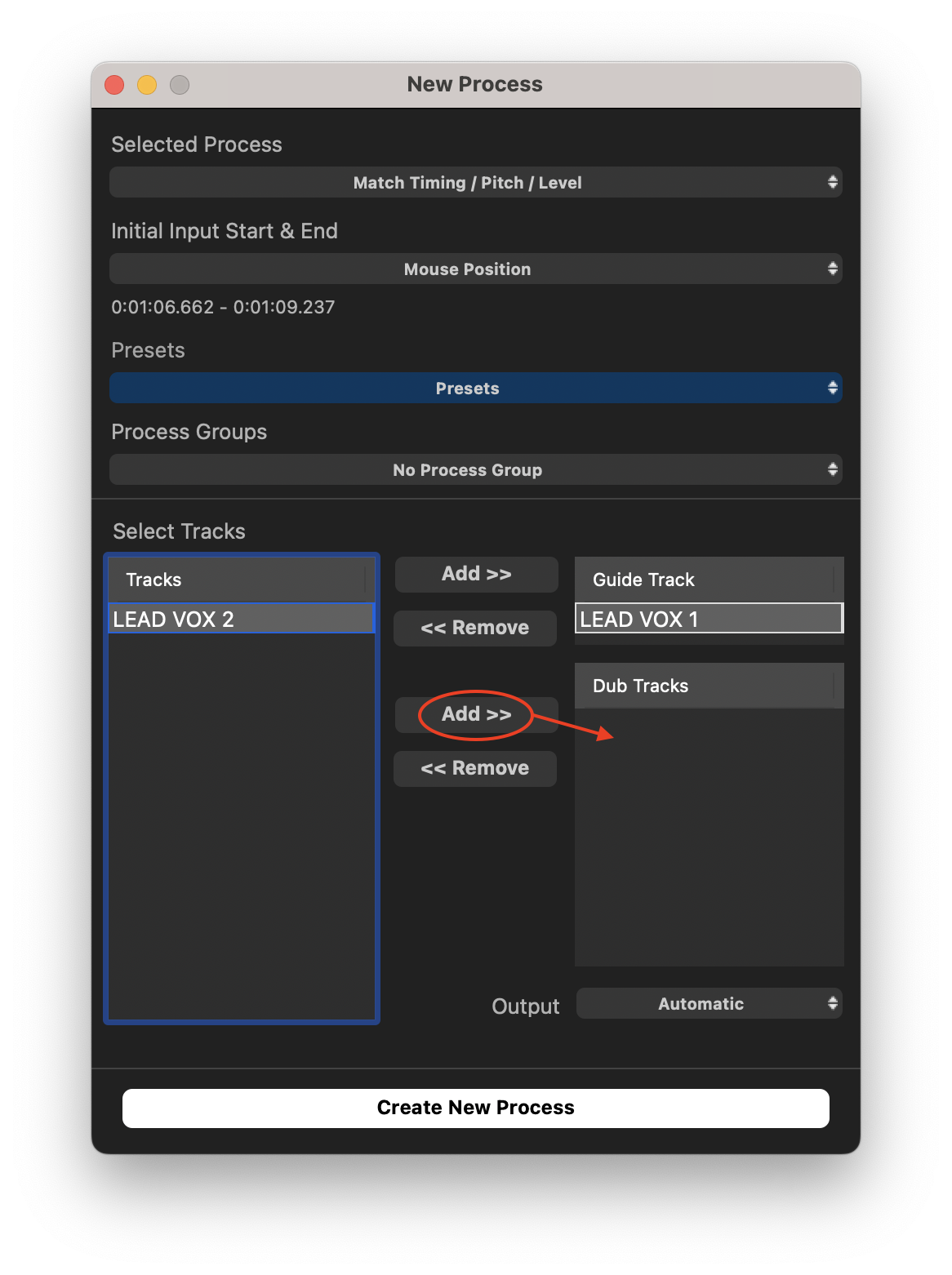

Then we can select our Dub track and click the lower 'Add >>' button. If we had multiple Dubs to be aligned with the same guide, we could add them as well. See Creating multiple Match Processes for more.

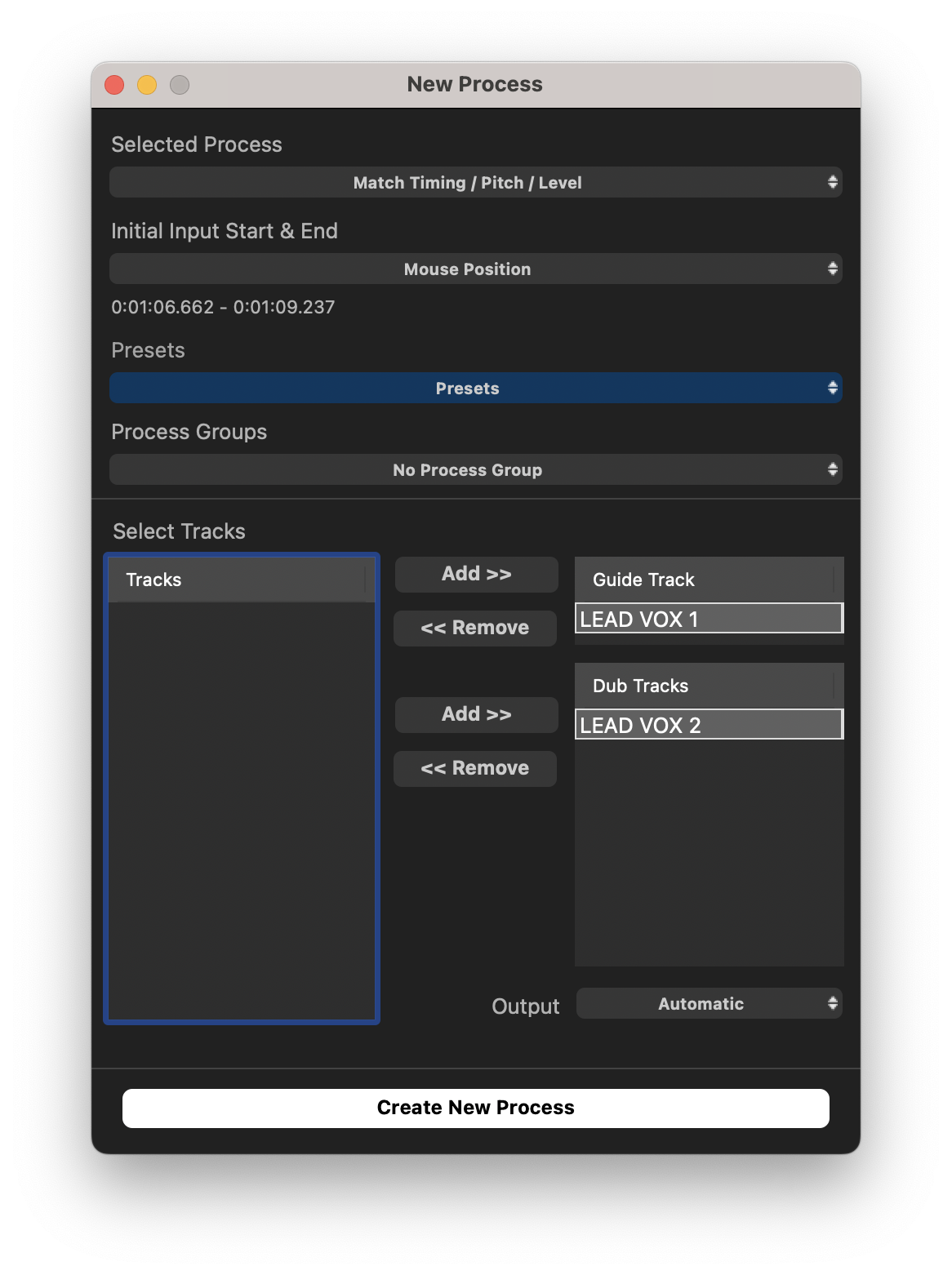

When you have added both your Guide and Dub tracks, your New Process window should look like the below image:




We can now create and run the Match Process. Simply left click the New Process button at the bottom of the New Process window or, if Revoice Pro is the selected program, press the N key (shortcut) on the keyboard.

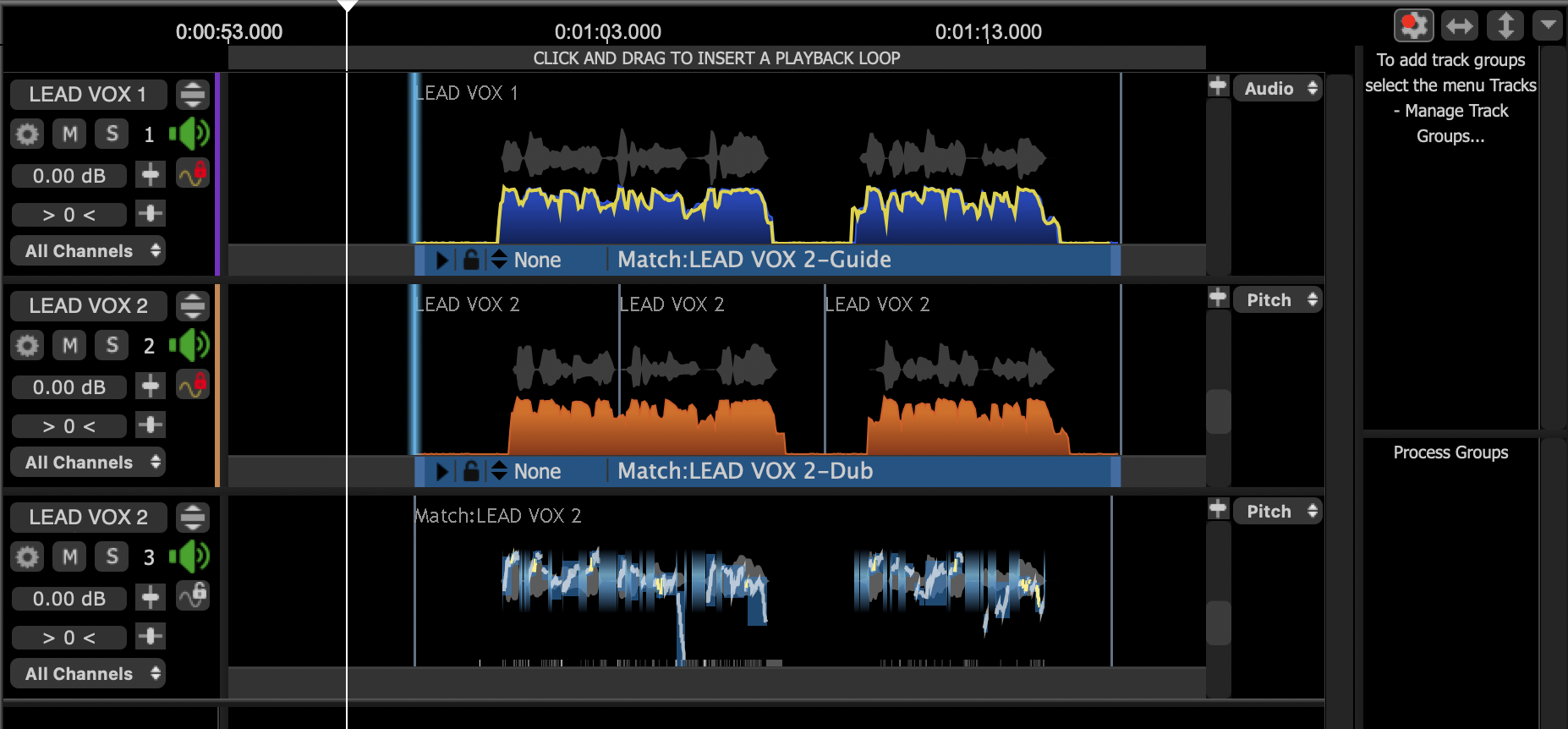

In this example, creating the New Process will insert the blue (selected) Guide and Dub Process Control Blocks (shown in the picture below with names Match:LEAD VOX 2-Guide and Match:LEAD VOX 2-Dub) into the Process Control Tracks (below each corresponding audio waveform). These Blocks show where the processing will start and end for each input signal.




A red line will also appear in the Output track (Audio 3), showing where the output audio of the process is ready to be rendered. However, if background processing is turned on the Energy of the Guide and Dub will be shown in blue and orange in Tracks 1 and 2 respectively, and the output audio will be rendered immediately and appear in Audio 3 (along with the pitch trace). The yellow trace over the blue Guide energy shows how well the time-aligned Dub energy is being matched to the Guide Energy pattern.



If the input audio, output audio, or range settings do not seem correct, the user can use CMD Z (Mac) or CTRL Z (Windows) to remove the Process, then change the setting, and re-create the process with the corrected settings.


Match Process Control Panel

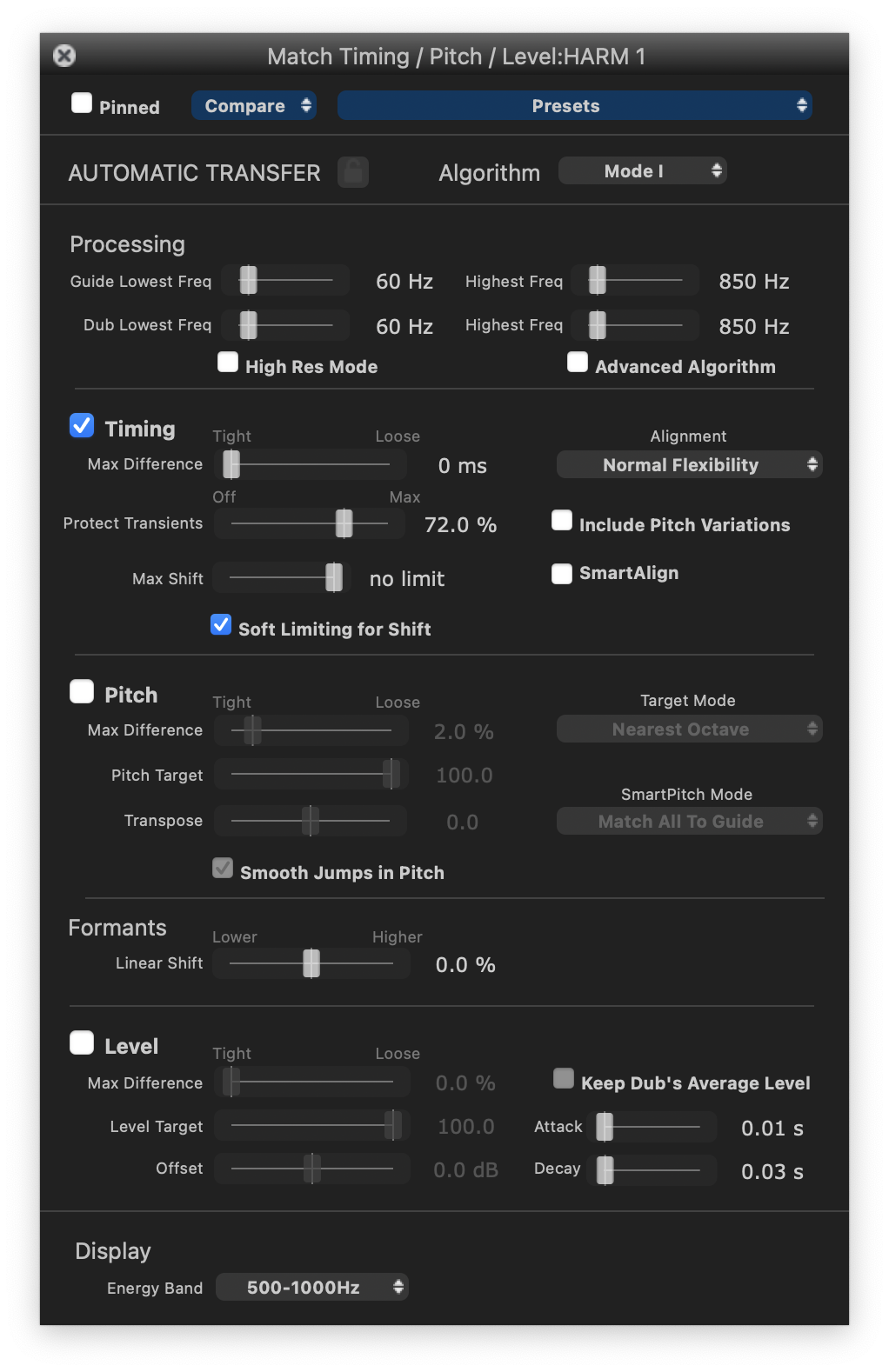

To inspect and change the audio processing settings in the Match Process Control Panel, if the Match process Output, Guide or Dub process control track is selected (blue), press the P key on the keyboard (or the "open" arrow  in the Guide or Dub Process Control Blocks) to open the Control Panel as shown below.




Make any required adjustments (details are given in Adjusting Match settings) and the audio will be reprocessed. Press P again (or the close button) to close the panel.
