Revoice Pro 5.1 Manual Publication

Check/change Adjust settings

We will first show an example creating an Adjust Process using two selected and separated audio regions as shown below.

For details of functions common to all Processes see Basic Process functions. This explains a number of the points mentioned below.

When setting up an Adjust Process, you need to specify:

That the "Selected Process" is an Adjust process
Which track is the Input
Which track the Output should go to
What is the range of the Input signal
What are the Adjust process settings (Process Control Panel)

Revoice Pro chooses these settings for you automatically when you have done the same processing previously, and when you set a Playback Range or create new tracks.

There are, though, many times that these settings will need to be altered.

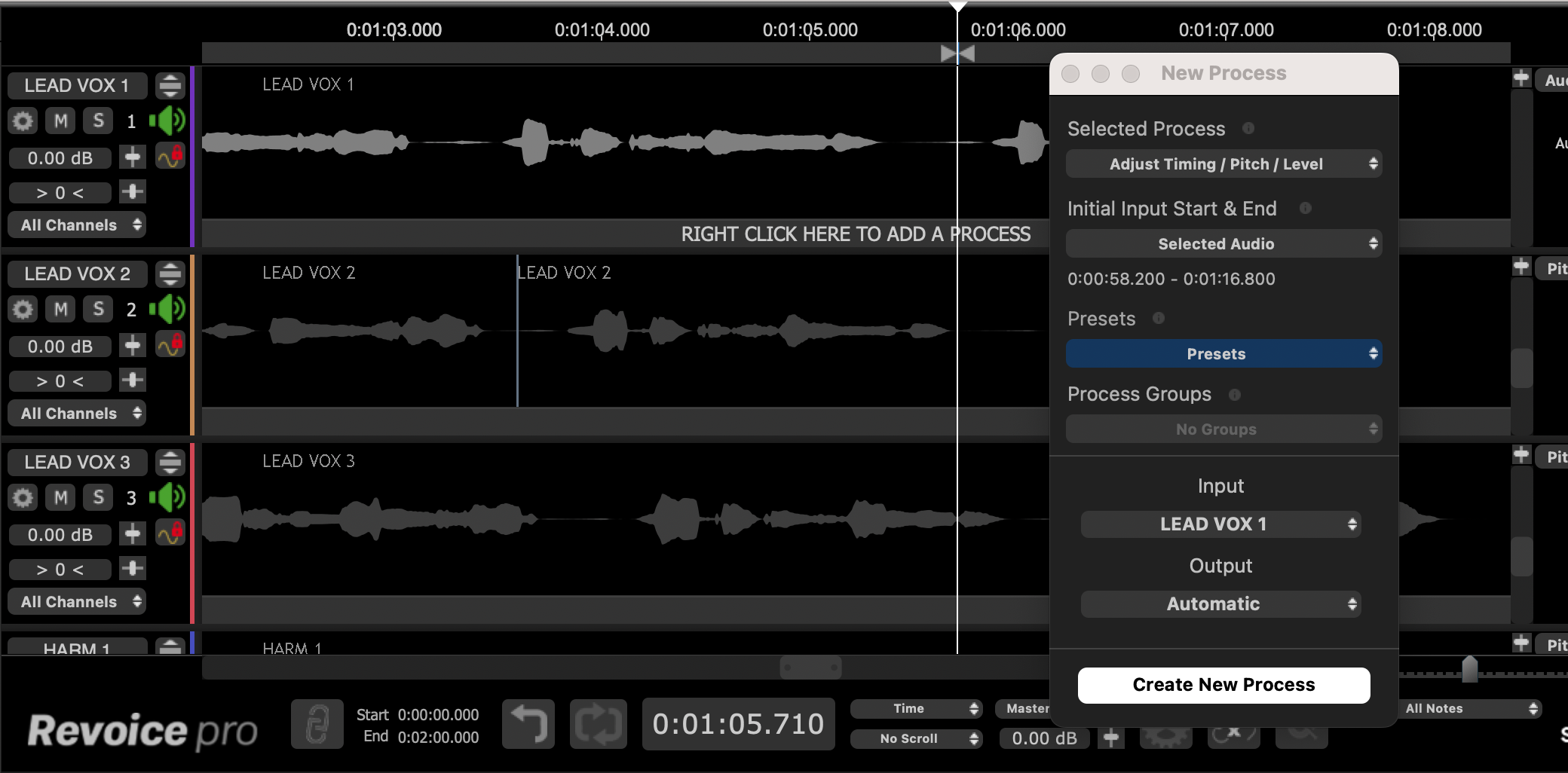

If you do not see the New Process window (shown in the image below on the right), then you need to open it. There are two ways to do this.

1) Right click in any Process Control Track and select New Adjust Timing / Pitch / Level.

2) Make sure the Revoice Pro session window is selected and press the B key on your keyboard. This will open the New Process window as shown below. Left click the Selected Process drop down to select Adjust. Pressing the B key again will close the window - but it is often more efficient to leave this window open.

Revoice Pro automatically preselects all of the drop down menu items in the New Process window. We briefly explain each drop down option used in this first example, in which none of these settings will need changing.

Selected Process: is correctly set to be an Adjust process.

Initial Input Start and End: the New Process window has correctly chosen the Selected Audio (which is the audio shown in grey) from start to end. You could alternatively use a Playback Range to highlight time periods of the audio to be processed, rather than relying on automatically selected audio.

Further options for setting this can be found in Setting a Process Control Block.

Presets: You can change the Adjust process settings before creating the process. If nothing is changed, then the current User Default Preset will be used. You can choose from one of the provided Factory Presets in the Presets drop-down menu, as a good starting point for processing typical programme material. Alternatively you can select the "Default" setting. (See Process Presets.)

Inputs: the Input is currently set to Lead Vox, to which the source audio has been loaded.

Output: Revoice will use 'Automatic' by default, creating a new track for the output of the process as required. If you have already created a track and wish to select it, you can choose it from the drop-down menu.
